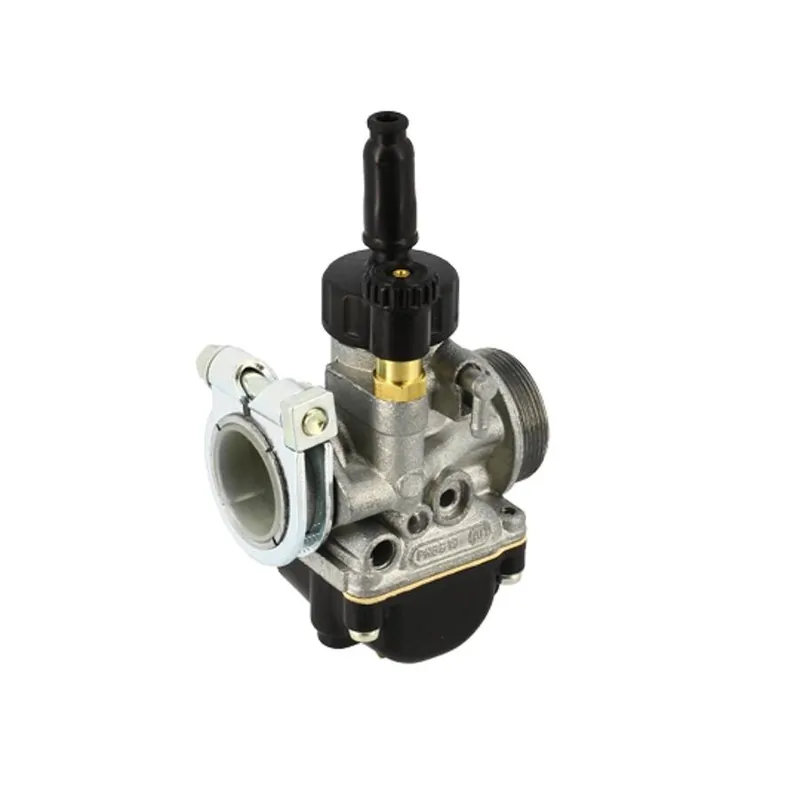

Dellorto PHBG 19mm clamp flange
Carburetor Dell’Orto PHBG 19mm AD. Original Dellorto PHBG carburetor.
The Italian company Dell’Orto is one of the world’s leading manufacturers of carburetors. Dellorto carburetors are known for their high reliability and top performance.
Only the right choice of carburetor can optimally support and unlock your engine’s performance. That’s why upgrading the carb should always be part of any tuning project. While carburetors come with a basic factory setup, fine-tuning to match your specific engine and setup is always necessary for the best results.
The carburetor is suitable for metal intake manifolds with a connection width of 24mm, the air filter connection has an M32x1.25mm thread. If you require a 38mm connection width, you can use the adapter L-DEL042240082 .
Specifications Dellorto PHBG 19mm
- Original Dellorto PHBG
- Diameter: 19mm
- Choke type: Lever choke
- Connection intake manifold: 24mm
- Connection air filter: M32 x 1.25 thread
- Main jet: 5mm / 85
- Idle jet: 50
- Carburetor needle: W7
- Emulsion tube AU262
Technical Specifications
| Carburetor Dellorto PHBG 19 AD | |
|---|---|
| Weight | 0.45 kg |
| Brand | Dell’Orto |
| Product type | Carburetor |
| Carburator type | PHBG |
| Diameter carburetor | 19mm |
| Air filter connection | 32mm |
| Manifold connection | 24mm |
| Choke | Lever Choke |
| Ports | Without vacuum port, Without oil port |
